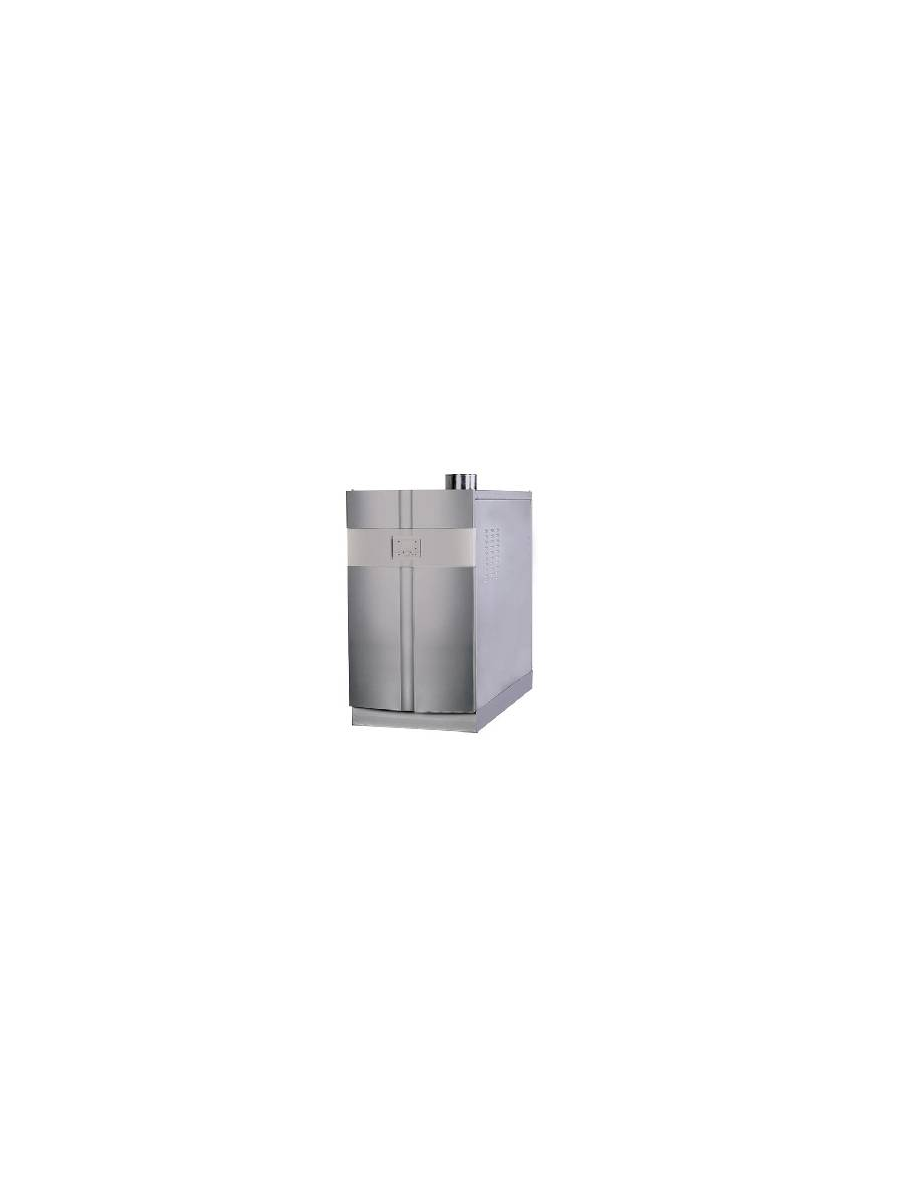

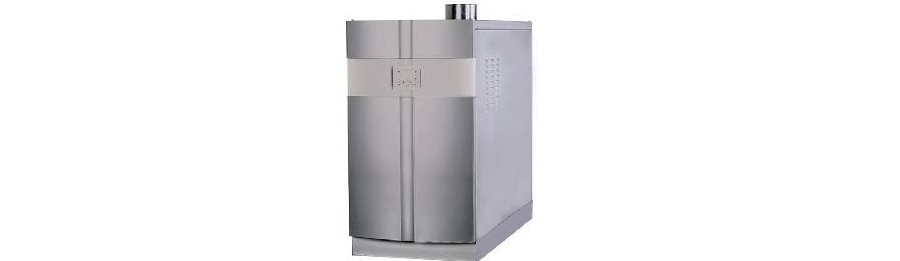

Floor Standing Condensing Boiler
Floor-standing premix condensing hot water boilers — high efficiency Al-Mg-Si heat exchanger, cascade up to 16 units, natural gas or LPG.
Share
Floor-standing condensing hot water boilers with premix condensation technology and a metal-fibre coated steel burner producing micro flame for high thermal efficiency. Al-Mg-Si alloy cast body heat exchanger delivers strong heat transfer.
Highlights
- Single-boiler capacities typically from 230 kW to 840 kW (9 capacity steps)
- Cascade connection for thermal capacity up to about 13,450 kW
- Up to 16 boilers in cascade
- 5:1 modulation for energy saving
- LCD control with daily/weekly and seasonal programmes
- Natural gas and LPG fuel options
| Parameter | Value |
|---|---|
| Type | Floor-standing premix condensing |
| Single capacity class | Approx. 230 – 840 kW |
| Cascade | Up to 16 boilers / ~13,450 kW class |
| Modulation | 5:1 |
| Heat exchanger | Al-Mg-Si alloy cast body |
| Fuels | Natural gas / LPG |
| Controls | LCD panel, scheduling |
Share heating load (kW), fuel, cascade preference and mechanical-room constraints for boiler count and model selection.
Send your project requirements. Our team will reply with a suitable selection and quotation.
