Hot Oil Pumps
Horizontal hot oil / heat-transfer centrifugal pumps for thermal oil circuits without abrasive particles — air-cooled path to bearings, up to +350 °C.
Share
Desan Engineering hot oil / heat-transfer pumps are suitable for heat transfer oils and low-viscosity industrial oils that do not contain abrasive particles.
Horizontal shaft, single-stage volute, end-suction closed impeller centrifugal pumps with back pull-out design: bearing group, seal box, shaft and impeller can be removed without separating the volute from the pipeline.
Highlights
- Natural air circulation provides temperature drop from casing toward bearings
- Radially closed impellers with radial vanes to balance axial force and reduce seal pressure
- High-temperature single mechanical seal
- Grease-lubricated bearings as standard
- Typical use above 100 °C in chemical, petrochemical and food processing heat-transfer circuits
| Parameter | Value |
|---|---|
| Discharge flange | DN 32 – DN 150 |
| Flow rate (Q) | Up to 550 m³/h |
| Head (H) | Up to 105 m |
| Cooling | Air-cooled (casing → bearings) |
| Operating temperature | Up to +350 °C |
| Casing pressure (Pmax) | 10 – 16 bar |
| Seal | High-temperature mechanical seal |
| Bearings | Grease-lubricated (standard) |
| Design | Back pull-out, end-suction |
| Application | Heat transfer / hot oil |
Full curves, BOM lists and dimension tables are in the technical catalog (PDF).
Dimensional drawing — hot oil pump outline and flanges.

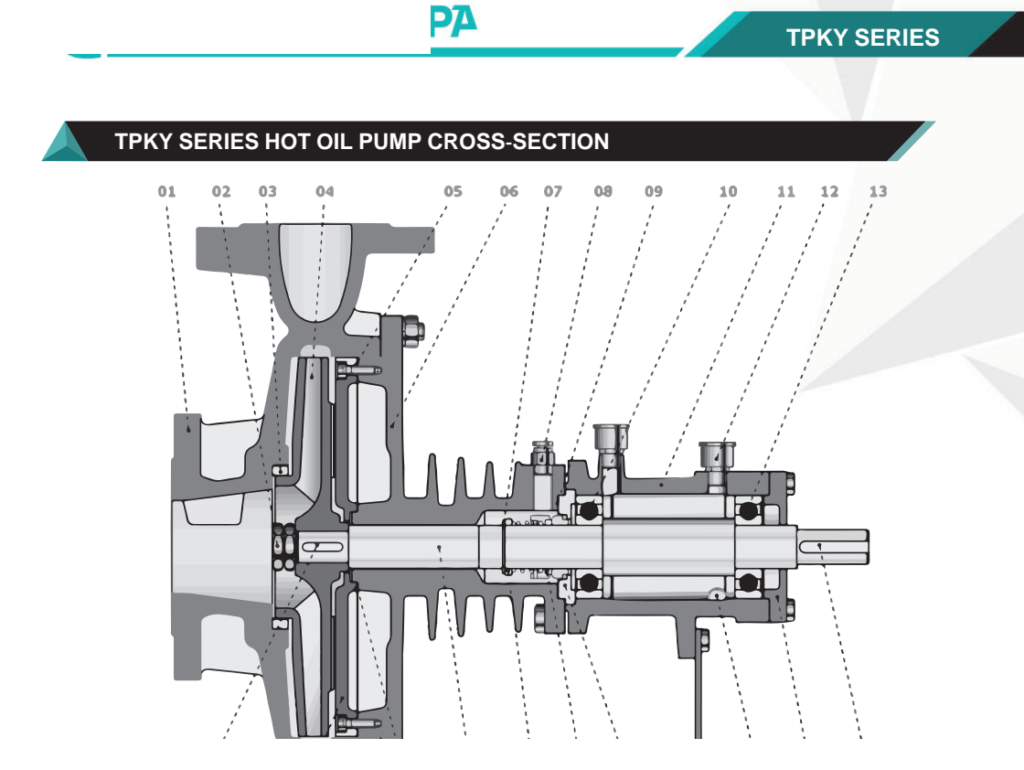

Cross-section drawing — hot oil pump construction.
Operating ranges
Curves for approx. 1,450 rpm and 2,900 rpm. Envelope: flow up to 550 m³/h, head up to 105 m, fluid temperature up to +350 °C.
Share oil type, temperature, viscosity, flow and head for correct seal and material selection.
