Horizontal Centrifugal Pumps
Horizontal shaft, single-stage, end-suction centrifugal pumps for industrial and building water transfer. Designed for clean or lightly contaminated liquids without corrosive substances or large solids.
Share
Desan Engineering horizontal end-suction centrifugal pumps are suitable for pumping liquids that do not contain corrosive substances or large solid particles. They are single-stage, horizontal shaft, volute casing, end-suction closed impeller centrifugal pumps.
Construction & service
- Coupling connection between motor shaft and pump shaft
- Suction and discharge flanges comply with TS EN 1092-2 / PN 16
- Soft packing is used for sealing in series production; mechanical seal available on request
- Easy-disassembly design: packing box, pump shaft, bearing housing and impeller can be removed without disconnecting the volute from the system
- Rotation is counter-clockwise when viewed from the suction side
- Bearing housings are lubricated from the outside; oil indicator on the bearing housing
Pump materials and packing may change depending on liquid density, operating temperature and pressure. Casing and impeller can be produced in bronze or stainless steel for custom duty.
Typical applications
Factory utilities, oil industry transfer, fire water (as hydraulic platform), irrigation, treatment plants, power plants, chemical industry, construction / building systems, maritime, food & beverage, mining, and HVAC.
| Parameter | Value |
|---|---|
| Discharge flange | DN 32 – DN 150 |
| Flow rate (Q) | Up to 1,200 m³/h |
| Head (H) | Up to 160 m |
| Motor speed | Up to 3,600 rpm |
| Operating temperature | -10 °C to +140 °C |
| Casing pressure (Pmax) | 10 – 16 bar |
| Flange standard | TS EN 1092-2 / PN 16 |
| Seal options | Soft packing (std) / mechanical seal (option) |
| Impeller | Closed, end-suction |
| Drive | Coupling between motor and pump |
| Materials (option) | Bronze / stainless casing & impeller |
Pump label example: 65-250 → discharge flange DN 65, impeller nominal diameter 250 mm. Custom production available for special duties.

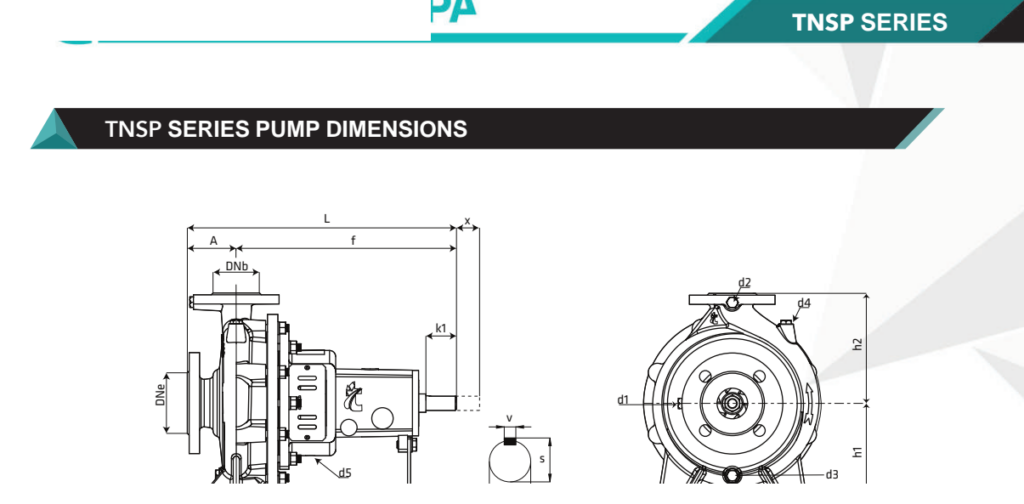

Dimensional drawing — overall, foot mounting and shaft end dimensions.
Cross-section drawing — soft packing / mechanical seal construction.
Operating ranges
Performance curves are published for approximately 1,450 rpm and 2,900 rpm bands across multiple DN / impeller combinations (e.g. 32-125 through 150-400 class models).
Envelope summary: flow up to 1,200 m³/h, head up to 160 m, speeds up to 3,600 rpm.
For exact selection, send required flow (m³/h), head (m), liquid, temperature and preferred speed via WhatsApp or the Request Form tab.
